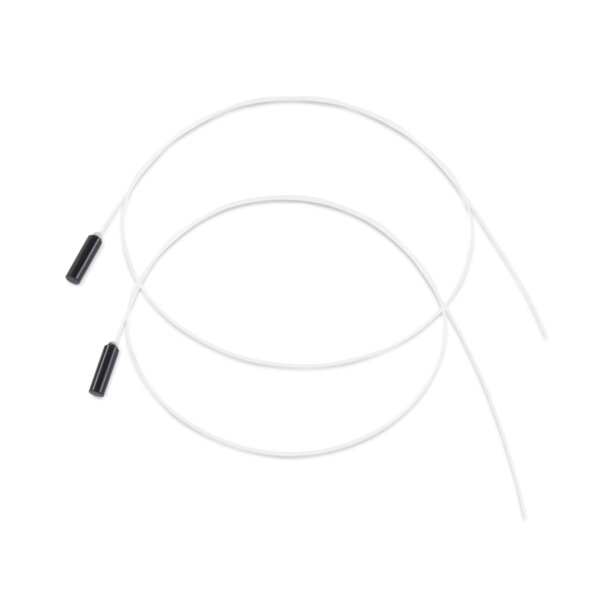

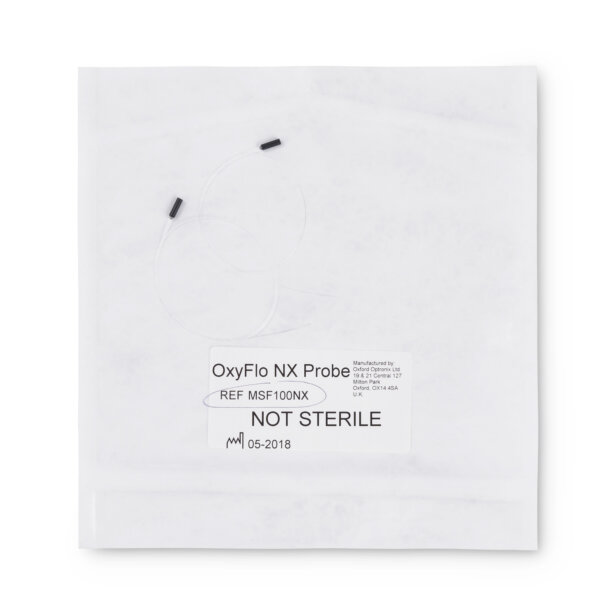

MSF100NX Single-fibre implantable blood flow probe

This highly flexible probe consists of a 0.5mm diameter polymethyl methacrylate (plastic) fibre with a standard length of 30cm. Particularly useful for chronic implantation, the MSF100NX can be directly inserted into tissue using a standard 22G i.d. cannula. The small and light coupling bead minimizes the total weight of the implanted probe. Flow measurements are made by attaching the MSF Driver (product code 'MSFD NX', see Accessories)

Fibre length: 30 cm
Fibre diameter: 0.5 mm
Collar length: 8 mm
Collar diameter: 3 mm

Reusability: Disposable
