OxyFlo™

SelectScience Reivew Widget

4.9 / 5.0 | 2 reviews

Our single-channel laser-Doppler tissue blood flow monitor/perfusion monitoring

  • Uncompromised reliability in continuous tissue blood flow assessment
  • Ideally suited to measurements of changing tissue blood flow in acute experimental models

<

>

View in pop-up

OxyFlo™ Pro
OxyFlo™ Pro XL

SelectScience Reivew Widget

4.9 / 5.0 | 2 reviews

Our multi-channel laser-Doppler tissue blood flow monitors with integrated touch-screen

  • Uncompromised reliability in continuous tissue blood flow assessment
  • Ideally suited to measurements of changing tissue blood flow in acute experimental models
  • Enhanced productivity & features

<

>

View in pop-up

  • Overview & Benefits
  • Resources
  • Testimonials
  • Journal Citations
  • Specifications
  • FAQ
  • Probes
  • Accessories

Overview

Perfusion by blood provides tissues with vital oxygen and nutrients, while removing waste products and distributing signaling molecules around the organism. The measurement of microvascular blood perfusion provides researchers with critical information in a number of research applications where blood supply has been disrupted.

Our blood flow monitors will be of interest therefore to life scientists wishing to directly and continuously measure local microvascular blood perfusion in in vivo models of ischemia-related disorders.

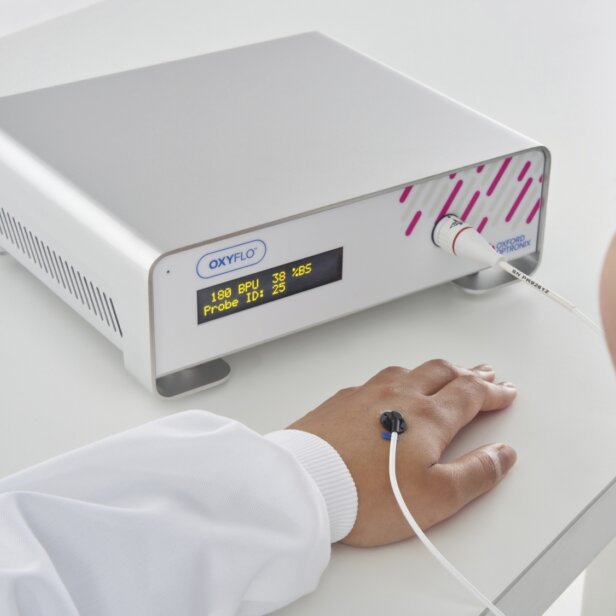

Our OxyFlo™ devices are laser Doppler flowmetry (LDF) monitors intended for monitoring of relative microvascular blood flow in living tissues.

Most applications are concerned with monitoring the competence of regional (microvascular) blood supply in specialties such as:

  • Peripheral vascular disorders
  • Cerebral perfusion monitoring in models of stroke and brain injury (e.g. MCAO)
  • Tumour perfusion monitoring / angiogenesis
  • Blood supply in free flaps and pedicle flaps
  • Shock monitoring

  •


Oxford Optronix Ltd. was founded when its current CEO pioneered the transition of the then nascent laser-Doppler flowmetry technology into a commercially viable product in the early 1990's. We remain a pioneer in the development of LDF technology and continue to set unrivalled standards of reliability, robustness and sensitivity, with the OxyFlo™ brand now well-established the world over in biomedical ischaemia research.

With the launch of OxyFlo™ Pro in 2013, our third-generation LDF platform, we blend contemporary design, plug and play convenience and touch-screen operation to provide one of the most advanced and reliable blood flow monitors on the market.



Key Benefits


Continuous tissue blood flow assessment

Our new-generation high performance laser Doppler blood flow monitors provide uncompromised reliability in continuous tissue blood flow assessment and are ideally suited to measurements of changing tissue blood flow in acute experimental models.

Versatility

A range of probe types and probe formats provide support for a host of specialist disciplines and applications requiring both invasive or non-invasive tissue blood flow assessment.

ART

OxyFlo™ monitors incorporate our proprietary artefact rejection technology, effectively filtering out the presence of motion artefacts in the blood flow signal. Substantially reduces and in most cases, completely eliminates motion artefacts or ‘spikes’ in the blood flow data arising from sensor cable movement and/or regular tissue movement (e.g. due to breathing).

Plug and play

OxyFlo™ probes require no calibration procedures or configuration following one-time probe calibration. Probes supplied at the time of monitor shipment are supplied factor pre-calibrated.

Touch-screen display and interface

OxyFlo™ Pro models feature a touch-sensitive, high-contrast, 140º viewing-angle screen, which displays real-time data in both digital and graphical (trace) formats, and provides access to instrument/user settings.

Multi-channel productivity

The OxyFlo™ Pro is available as a 2-channel model or, uniquely, as a 4-channel device (OxyFlo™ Pro XL) capable of driving up to 4 probes simultaneously. This provides the flexibility to suit all needs, including the simultaneous monitoring of blood flow from multiple tissue sites (e.g. comparison of pathological versus control tissue sites).

Upgradeable

The OxyFlo™ Pro dual-channel model can be factory upgraded to a 4-channel device.

Single sensor multi-parameter monitoring

Our OxyFlo™ blood flow monitors have been specifically developed for use our OxyLite™ oxygen monitors. The combination of these two fibre optic measurement systems provides simultaneous tissue blood flow and oxygenation data from each 'triple' parameter combined sensor

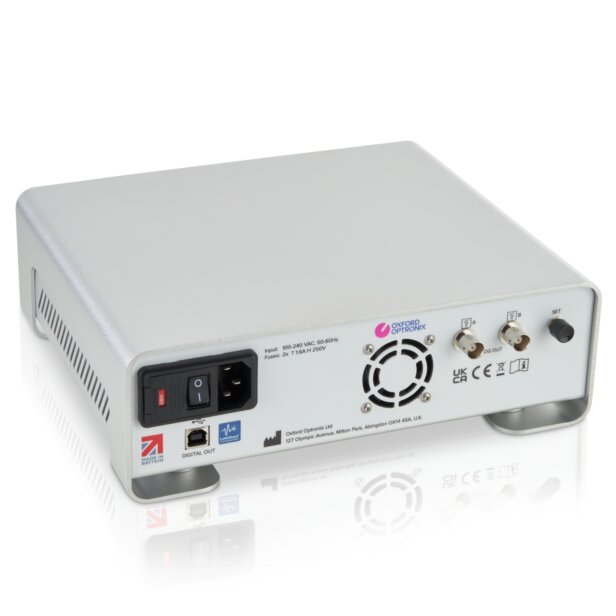

USB digital output

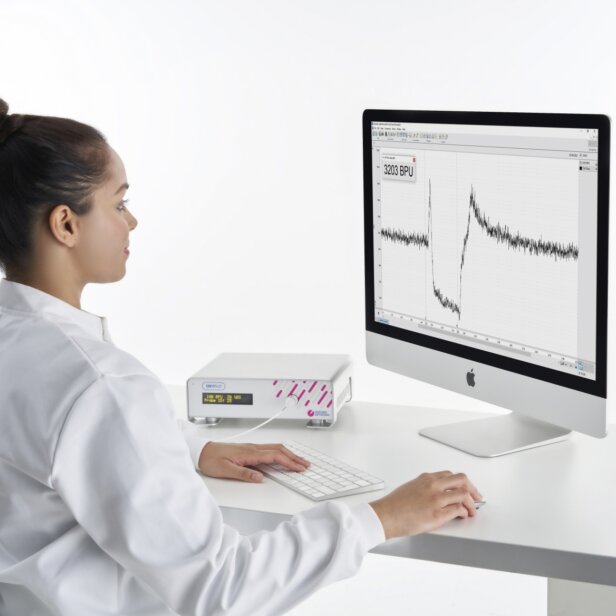

Our entire range of tissue monitoring devices now include a dedicated USB output that supports direct streaming of real-time recordings to a PC running the popular LabChart® Pro* charting software by ADInstruments. After installing a complimentary Add-on, LabChart will automatically identify the specific type and model of Oxford Optronix monitor and pre-load all the necessary configuration and channel settings, providing the ultimate in ‘plug and play’ convenience. For researchers wishing to make multi-parameter measurements, the Add-on supports multiple Oxford Optronix devices at the same time. Data acquisition and recording just got a whole lot easier!
LabChart Compatible
*LabChart version 8.0.4 or later required; PC/Windows only

Analogue data outputs

Continuous data recording to PC or Mac platforms is supported via standard analogue data outputs offering compatibility with third party data recording solutions.

2-year product warranty

Our monitors are now provided with a comprehensive 2-year manufacturer’s warranty, covering defects in material or in workmanship. An optional extended warranty package, providing up to 6 years of ‘peace of mind’ cover, including preventative maintenance servicing is available at the time of purchase.


Intended use statement:
OxyFlo™ and OxyFlo™ Pro are intended for laboratory, industrial and research use only.
OxyFlo™ and OxyFlo™ Pro are NOT intended for use in human subjects/patients.



 Made in Britain
