OxyFlo™ Pro 2 or 4-channel laser Doppler microvascular blood flow monitors with touch screen

  • Uncompromised reliability in continuous tissue blood flow assessment
  • Ideally suited to measurements of changing tissue blood flow in acute experimental models
  • Enhanced productivity & features
Enquire

Overview

The OxyFlo™ Pro range takes the winning formula of our third-generation laser Doppler flowmetry technology and packages it into a compact, flexible form factor featuring a convenient touch-screen display and either 2-channel or 4-channels. The range topping 4-channel OxyFlo Pro XL can simultaneously drive up to 4 probes for the simultaneous monitoring of tissue perfusion from multiple tissue sites simultaneously.

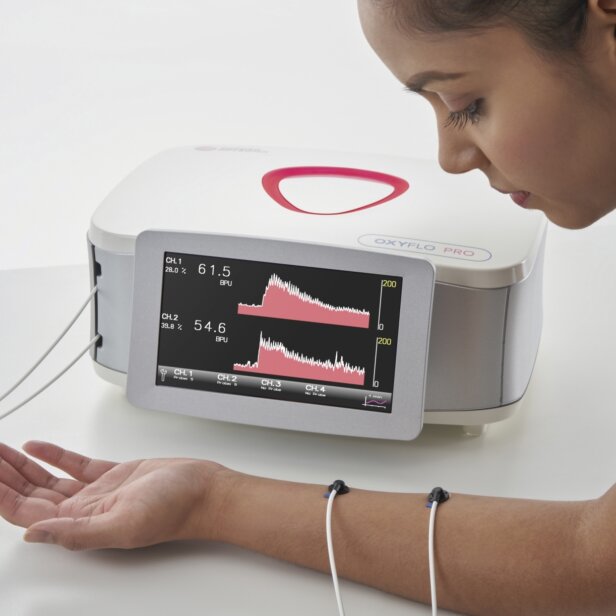

OxyFlo™ Pro is intended for monitoring of relative microvascular blood flow in living tissues.

OxyFlo™ Pro Specifications

Dimensions 150mm (H) x 310mm (W) x 280mm (D)
Weight 4kg / 9lbs
Operating temperature 10 – 30°C
Operating humidity 0 – 70% (non-condensing)
Power requirements External PSU (100-240V / 47-63 Hz), 40W max

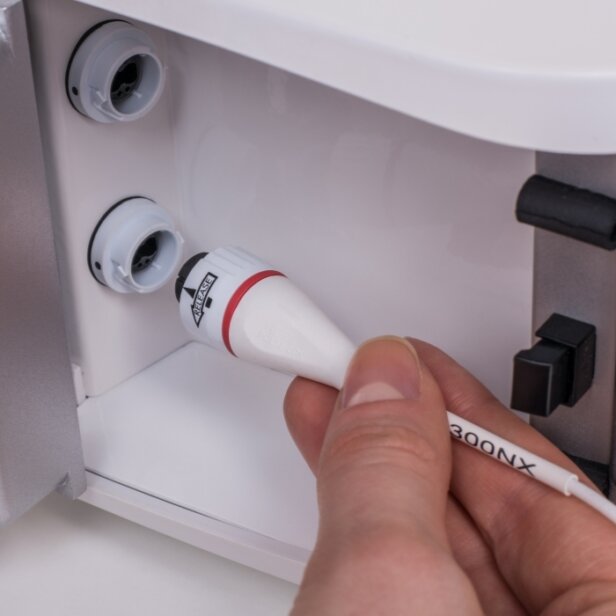

Number of probes supported 2 (OxyFlo Pro) or 4 (OxyFlo Pro XL)

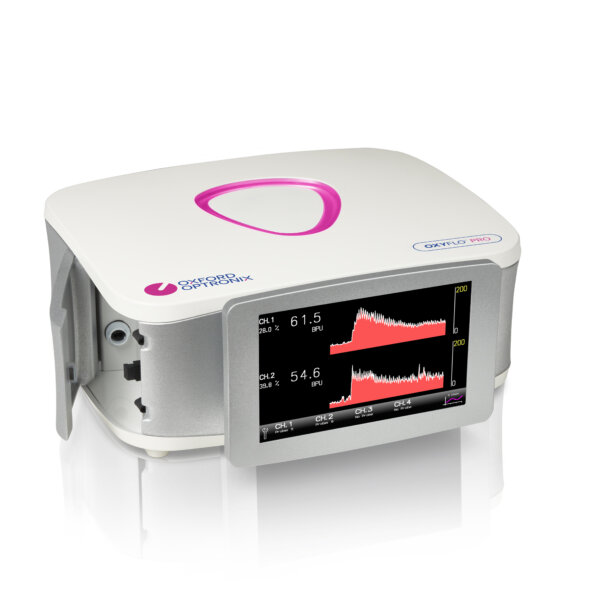

Display High contrast 800 x 480 LCD touch-screen
Instrument configuration Via touch-screen display

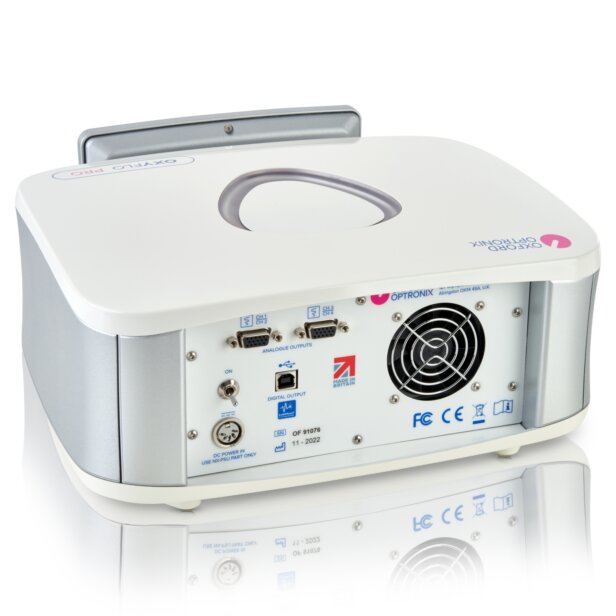

Analogue voltage outputs 1 x 15-pin D-type (4 outputs) ; OxyFlo Pro XL: 2 x 15-pin D-type (8 outputs)
Laser type Temperature-stabilized semi-conductor laser diode
Laser wavelength 785 ±10nm
Laser classification Class 1 (EN 60825-1:1994, 21 CFR 1040.10 and 1040.11)
Laser power <0.5mW from probe tip/underside

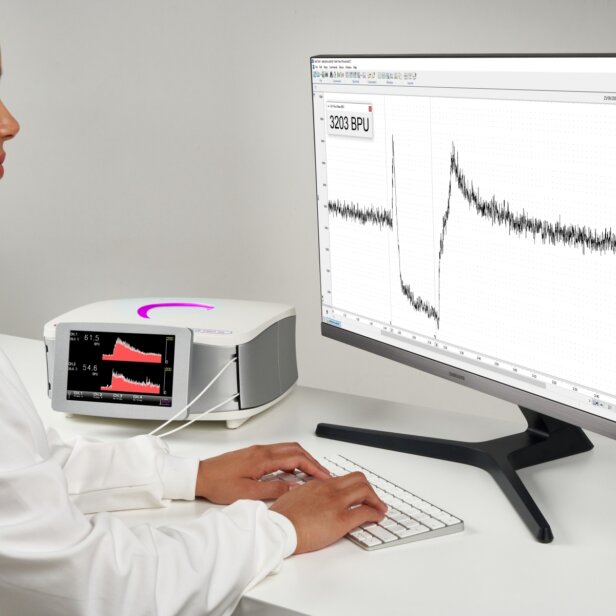

Digital output USB type B interface for data recording to LabChart software (PC only)
Analogue output 15-pin D-connector interface for data recording via BNC adapter cable (0-5V)
Mode of operation Laser Doppler flowmetry
Measurement units (displayed) 0 – 9999 BPU (blood perfusion units)
Stability of reading ± 5%
Sampling rate 200Hz
Measurement averaging 200ms (Flow); 5ms (Raw); 5s (ART); 200ms (Backscatter), rolling
Display update interval (numerical) 2s (5s rolling averaged)
Probe identification Automatic; monitor stores one-time calibration
Probe calibration Factory or user-calibrated using Oxford Optronix motility standard
Probe shelf-life Unlimited
Zeroing Automatic, controlled
Default analogue data output range 0 – 5V (= 0 – 5000 BPU or 0 – 100% Backscatter)
Analogue data output rate 65Hz
