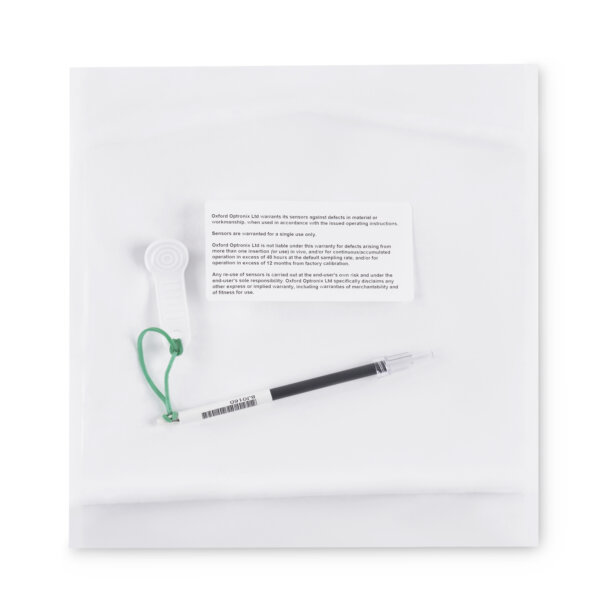

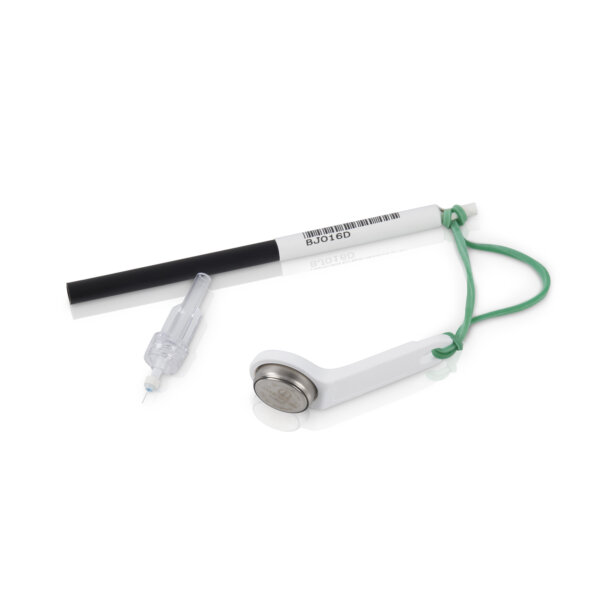

NX-CI/BF/O/E Implantable bare-fibre type oxygen sensor

Flexible, minimally invasive oxygen sensor suitable for chronic tissue implantation.

Tissue placement via introducer (e.g. Angiocath®)
T-90 response time approx. 20 s
Manual temperature compensation required
NX-CI ADAPTER required (see accessories)
Supplied with calibration on iButton device
MRI compatible

Dimensions:
Tip diameter: approx. 250 µm
Exposed tip fibre length: 60 mm (default); 2 mm minimum
Ferrule length: 10 mm

Reusability: Intended for single use
