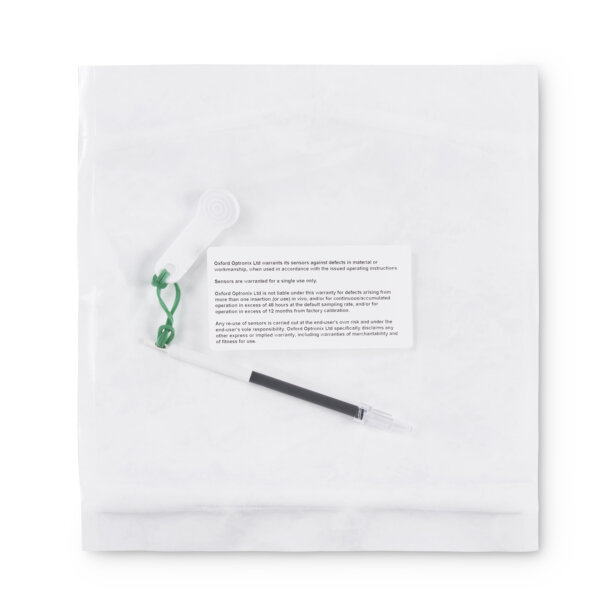

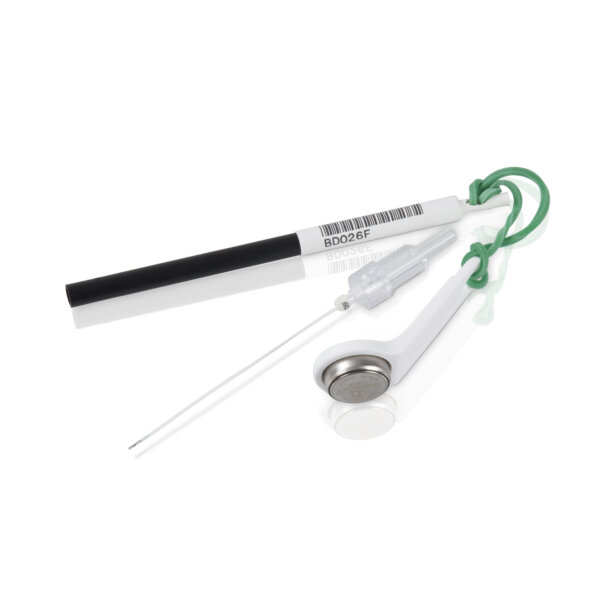

NX-CI/LAS-1/O/E Implantable large area type oxygen sensor (1 mm²)

Sensor tip shielded within a short 23G surgical steel cage, oxygen detection via lateral 'windows', 1 mm² tissue sampling area/volume.

Tissue placement via introducer (e.g. Angiocath®)
T-90 response time – approx. 3 min
Manual temperature compensation required

Dimensions:
Tip cage diameter: 630 µm
Tip cage length: 5 mm
Sleeving diameter: 820 µm
Length from ferrule: 60 mm
Ferrule length: 10 mm

Reusability: Intended for single use
