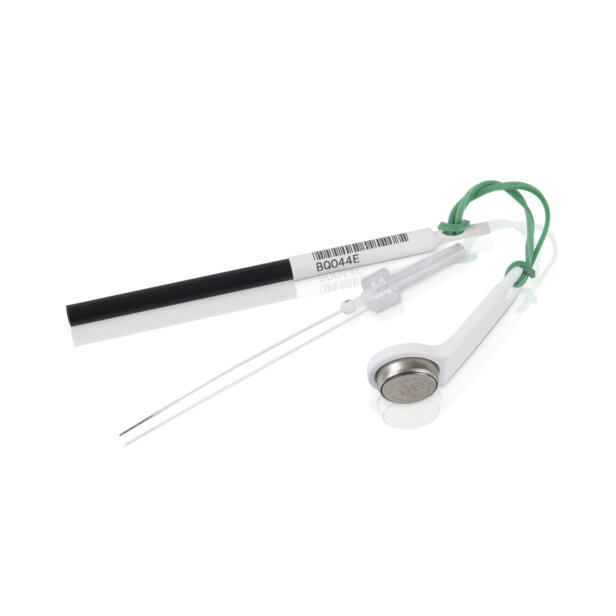

NX-CI/LAS-8/O/E Implantable large area type oxygen sensor (8 mm²)

Sensor tip shielded within an extended 23G surgical steel 'cage', oxygen detection via lateral 'windows', very large tissue sampling area/volume (8 mm²) for area-averaged tissue oxygen measurements.

  • Tissue placement via introducer (e.g. Angiocath®)
  • T-90 response time – approx. 3 min
  • Manual temperature compensation required
  • NX-CI ADAPTER required (see accessories)
  • Supplied with calibration on iButton device
  • Single use

Dimensions:
Tip cage diameter: 630 µm
Tip cage length: 12 mm
Sleeving diameter: 820 µm
Length from ferrule: 60 mm
Ferrule length: 10 mm
