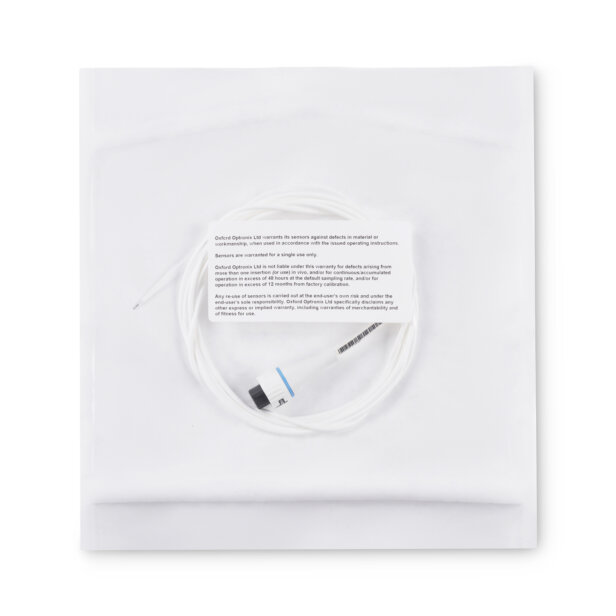

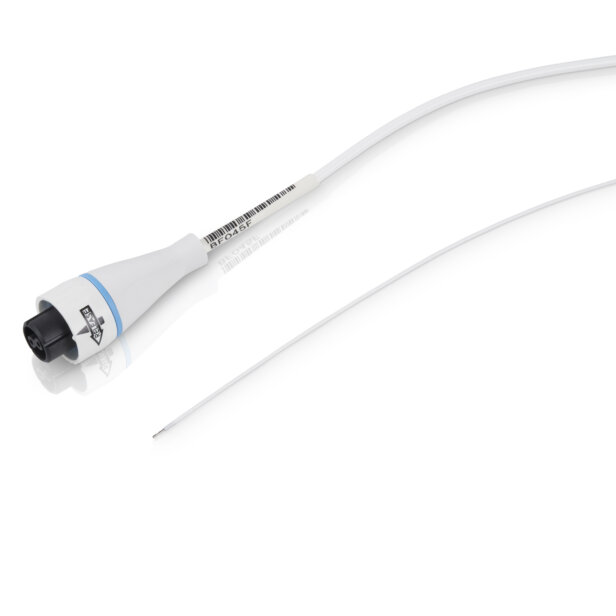

NX-LAS-1/O/E Oxygen-only large area sensor (1 mm²)

Sensor tip shielded within a short 23G surgical steel cage, oxygen detection via lateral 'windows', 1 mm² tissue sampling area/volume. Suitable for localized oxygen measurements from virtually any tissue type, or for in vitro dissolved oxygen applications.

Tissue placement via introducer (e.g. Angiocath®)
T-90 response time – approx. 3 min
Manual temperature compensation required

Dimensions:
Tip cage diameter: 630 µm
Tip cage length: 5 mm
Sleeving diameter: 820 µm (first 50 cm)
Total sensor length: 2.5 m

Reusability: Good
