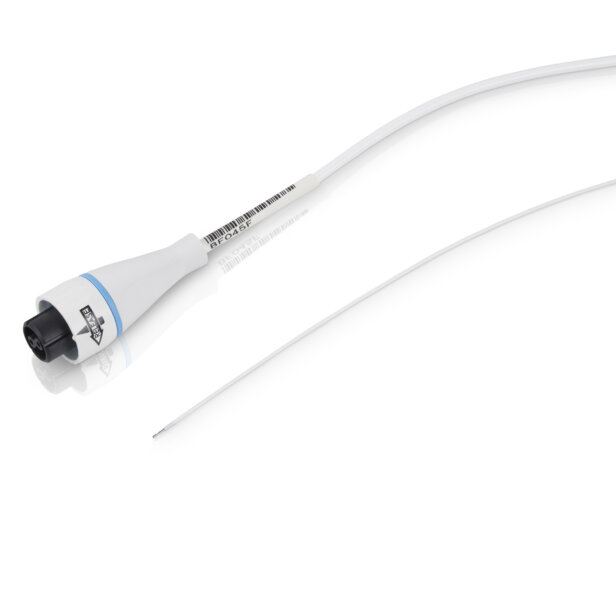

NX-LAS-1/OT/E Oxygen/Temperature large area sensor (1 mm²)

Combined oxygen/temperature sensor tip shielded within an extended 23G surgical steel cage, oxygen detection via lateral 'windows', large tissue sampling area/volume (1 mm²) for area-averaged tissue oxygen/temperature measurements.

Tissue placement via introducer (e.g. Angiocath®)
T-90 response time – approx. 3 min
Automatic temperature compensation

Dimensions:
Tip cage diameter: 630 µm
Tip cage length: 5 mm
Sleeving diameter: 820 µm (first 50 cm)
Total sensor length: 2.5 m

Reusability: Good
