What Does a Laser Doppler Flowme­ter Measure?

by Justin Croft, Sep­tem­ber 2025

Introduction

A laser Doppler flowmetry (LDF) monitor measures microvascular blood flow, typically expressed as a perfusion index. By detecting tiny frequency shifts in scattered laser light caused by moving red blood cells (the Doppler effect), it provides a continuous, real-time picture of tissue perfusion at the capillary level. This makes LDF a valuable tool for studying conditions where microcirculation plays a critical role. This includes areas like tissue ischemia, tumour angiogenesis, wound healing, and other scenarios of impaired or altered blood flow.

Understanding blood flow at the microvascular level is fundamental to many areas of biomedical research. Whether examining ischemia, tumour growth, wound repair, or cerebral perfusion, the ability to monitor how well tissues are being perfused yields valuable insights into physiology and disease. Laser Doppler flowmetry is one of the most established methods for tracking tissue perfusion in real time. By providing a non-invasive and continuous assessment of blood flow, LDF-based monitors have become standard tools in both experimental and clinical settings for microcirculation research.

How does laser doppler flowmetry work?

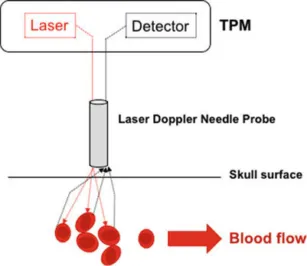

Laser Doppler flowmetry is based on a straightforward physical principle. When coherent laser light illuminates tissue, it scatters off moving red blood cells within the microvasculature. This movement causes a slight frequency shift in the reflected light (the Doppler shift) that correlates with the velocity and number of blood cells in motion. Specialized detectors capture these shifted light signals, and the LDF device computes a signal proportional to relative blood flow (often termed "blood perfusion units").

Importantly, LDF measures relative changes in perfusion rather than absolute flow volume. Unlike Doppler ultrasound – which is better suited for measuring flow in isolated vessels – laser Doppler techniques focus on the microcirculation, making them ideal for tissue-level blood flow studies. The sampled tissue volume is typically very small (under the probe tip), providing localized perfusion information.

LDF is highly sensitive to changes in local blood perfusion. For example, Zherebtsova et al. demonstrate the value of LDF as part of a multimodal optical approach for evaluating microcirculation in limb tissues. By combining LDF with other optical modalities (like absorption and fluorescence spectroscopy), their method showed high diagnostic power for detecting microvascular disturbances. This underscores that LDF can be effectively integrated with complementary techniques to improve vascular assessments in research.

What does a laser doppler flowmeter measure?

At its core, a laser Doppler flowmeter measures microvascular blood flow, reported as a blood perfusion unit. This index reflects the flux of red blood cells in the sampled tissue volume. Because it’s a relative measure (no absolute units like mL/min), it is best used to track relative changes in perfusion over time. In practice, LDF systems are used across a wide range of applications, including:

  • Cerebral perfusion studies
    Monitoring cortical blood flow in models of stroke, MCAO, or traumatic brain injury.
  • Ischemia reperfusion models
    Ensuring tissues and organs of interest lack blood flow and then assessing the physiology of a returning blood supply.
  • Peripheral circulation
    Investigating microvascular function in vascular diseases or after limb transplantation.
  • Shock and resuscitation research
    Evaluating tissue-level perfusion during haemorrhagic shock and recovery.

Researchers have found LDF useful even in specialized fields like dentistry. For instance, Ghouth et al. reported that LDF has high diagnostic accuracy in assessing dental pulp vitality, with a sensitivity of 81.8%–100% and specificity of 100%. In their review, LDF outperformed conventional pulp tests (like pulp oximetry and electric pulp testing) in reliably detecting blood flow return in injured or treated teeth. This reliability makes LDF especially valuable for early detection of pulp revascularization after trauma or endodontic therapy.

Meeting research needs: features of modern LDF systems

For researchers, the quality and usefulness of perfusion data depend heavily on the capabilities of the monitoring system. Key factors include sensitivity, reproducibility, and the ability to minimize noise (e.g. from motion artifacts).

Modern LDF monitors incorporate features to address these needs and make experiments more robust. For example, multi-channel systems allow simultaneous monitoring at multiple sites (e.g. comparing an ischemic region to a control region), which can greatly enhance experimental design.

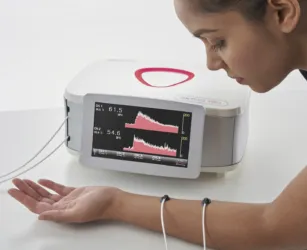

Contemporary LDF platforms, such as the OxyFlo™ Pro, have been developed with these research requirements in mind. OxyFlo™ is a laser Doppler blood flow monitor that provides continuous, real-time tissue perfusion readings just like traditional LDF devices, but with additional enhancements, including:

  • Motion artefact rejection
    Movement from breathing, muscle twitches, or even slight probe cable shifts can distort blood flow readings. OxyFlo™ Pro models offer a dedicated filtering algorithm to minimize these artifacts, ensuring that what is displayed on screen reflects true perfusion rather than noise. This improves data reliability even under less-than-ideal conditions.
  • Multi-site monitoring

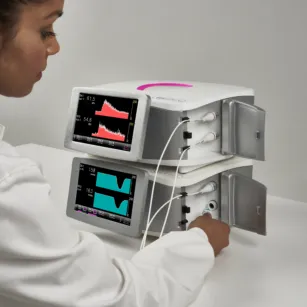

    In many models of ischemia or tumour growth, researchers want to compare blood flow between affected tissue and normal tissue simultaneously. OxyFlo™ Pro (2-channel) and OxyFlo™ Pro XL (4-channel) support multiple probes, making it possible to record perfusion from several sites in real time without switching equipment.
  • Probe versatility
    A wide range of probe designs are available – from flat surface probes designed for attachment to tissue surfaces such as skin (non-invasive) to needle or fiber probes that can be inserted into tissue for deeper measurements (minimally invasive). This flexibility means OxyFlo™ can adapt to different organs, tissue depths, and experimental setups, whether you are working with skin, muscle, or internal organs. Researchers can choose an appropriate probe to suit their study’s needs.
  • Integration with oxygen monitoring
    Modern studies often require more than perfusion data alone. OxyFlo™ can be seamlessly paired with the OxyLite™ tissue oxygen monitor, enabling simultaneous measurement of blood flow and tissue oxygen tension from the same site. By co-registering perfusion and oxygenation data in real time, such a setup provides a more complete picture of tissue physiology (especially valuable in studies of ischemia, tumour angiogenesis, or transplantation).
  • Ease of use
    Features like pre-calibrated probes with automatic recognition and a clear digital interface make daily use straightforward. Essentially, OxyFlo™ reduces the technical overhead (no frequent recalibration or complex setup), so researchers can focus more on data collection and analysis rather than troubleshooting hardware or software.

In short, systems like OxyFlo™ take the proven strengths of laser Doppler flowmetry – sensitivity, real-time responsiveness, and non-invasive microcirculation monitoring – and add the modern features researchers need: robust artefact rejection, multi-channel measurements, probe flexibility (for both non-invasive and invasive use), and integration with complementary measurements. This combination turns a blood flow monitor from a basic measuring tool into a more powerful platform for advanced and reproducible experimental design.

Integration potential – combining blood perfusion and tissue oxygen monitoring

While blood flow measurements alone provide critical insight into tissue perfusion, they don’t tell the whole story about tissue health. Ultimately, tissue viability depends on both perfusion and oxygen delivery/consumption. For this reason, combining LDF with tissue oxygenation measurements yields a far more comprehensive view of physiological status.

In the controlled lab environment, integrated systems (like combining OxyFlo™ and OxyLite™ monitors) allow researchers to record perfusion and oxygen levels in the same tissue region side-by-side.

This combined approach is especially valuable in areas like ischemia research, tumour physiology, and transplant medicine, wherever both the supply (blood flow) and oxygen utilization need to be understood. For instance, an ischemic tissue might have reduced blood flow (detected by LDF) and consequently lowered oxygen tension (detected by oxygen sensing). Measuring both can reveal how well oxygen delivery matches the tissue’s needs.

Tissue oxygenation reflects the balance between oxygen supply and consumption, while blood flow affects the efficiency of oxygen delivery and waste removal. Because blood flow is highly sensitive to pathophysiological changes, it can serve as a strong early indicator for diseases involving tissue ischemia (inadequate perfusion).

These include peripheral artery disease, cerebrovascular disease (stroke risk), certain neurological disorders, and even aspects of cancer progression. In many of these conditions, microcirculatory blood flow alterations occur before gross tissue damage, so LDF can help detect problems early. Coupling flow data with oxygen data further strengthens the diagnostic and investigative power of a study.

The OxyFlo™ blood flow monitor: bringing LDF into the modern lab

Although laser Doppler flowmetry has been used in research for decades, the reliability of data has always depended on the quality of the instrumentation. Today’s researchers face the challenge not of whether LDF works or it is well-established but how to minimize artifacts, capture multiple sites simultaneously, and correlate blood flow with other critical parameters like oxygen levels or temperature.

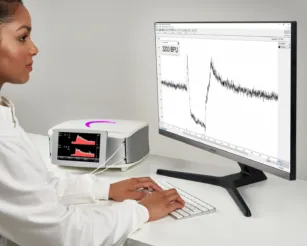

The OxyFlo™ series of blood flow monitors is designed with these modern needs in mind. OxyFlo™ devices provide continuous, real-time measurements of tissue perfusion, but they also address long-standing practical challenges in microvascular research:

  • By employing the motion artefact rejection and multi-site capabilities described earlier, OxyFlo™ ensures that experiments involving movement (e.g. breathing animals or muscle contractions) or comparisons between regions can still yield clean, interpretable data. Researchers can be confident that a drop in the perfusion signal is due to a physiological change and not someone bumping the probe.
  • The probe options for OxyFlo™ allow it to be used in both non-invasive and invasive modes. For example, you might use a lightweight surface probe secured to the skin of a rodent to monitor skin perfusion or use a fine needle probe inserted into an organ to measure internal microcirculation. In either case, the readings are continuous and real-time. This versatility broadens the scope of experiments that can be done with one device.
  • Integration with the OxyLite™ oxygen monitor means that with OxyFlo™ you’re not just getting perfusion data in isolation. The same system can be part of a combined setup to also record tissue oxygen levels via a single sensor that measures both metrics. This effectively turns your monitoring station into a tissue vitality dashboard. This is particularly powerful in studies where interventions, like a drug or surgical procedure, might change both blood flow and oxygen usage in tissue.
  • Attention to user-friendliness, such as automatic probe calibration/recognition and a touchscreen interface on Pro models, reduces the learning curve and daily hassle. This translates to more consistent data, because settings are correct and drifts or setup errors are minimized. It also means lab members can easily adopt the equipment in their workflows.

In essence, OxyFlo™ takes the core advantages of LDF – being sensitive, real-time, and minimally invasive – and upgrades the platform with features that matter for cutting-edge research. The result is not just a perfusion number, but a richer data set and greater confidence in your findings.

Follow this link for an exhaustive list of articles citing OxyFlo™

Conclusion

Laser Doppler flowmetry provides researchers with a non-invasive, sensitive, and versatile method for measuring tissue perfusion. From fundamental microvascular physiology studies to tumour monitoring and dental diagnostics, LDF continues to yield insights that are difficult to obtain by other means. By incorporating advanced features such as multi-site monitoring, artefact rejection, and integration with oxygen sensing, modern platforms like our OxyFlo Pro™ help scientists generate more reliable and meaningful data from the microcirculation. For any research team seeking a deeper understanding of tissue health and perfusion, laser Doppler flow measurement remains an indispensable tool.
